Description

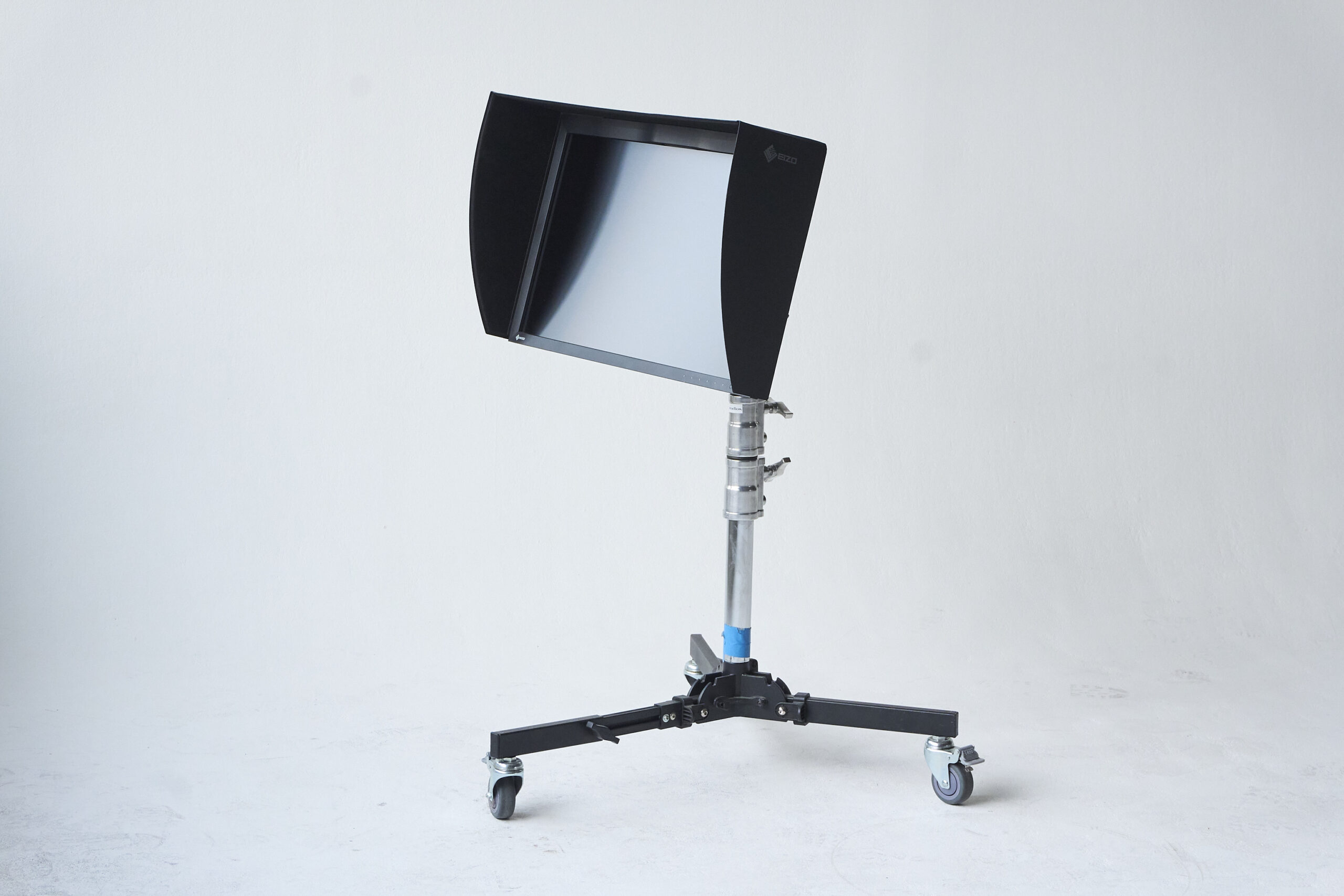

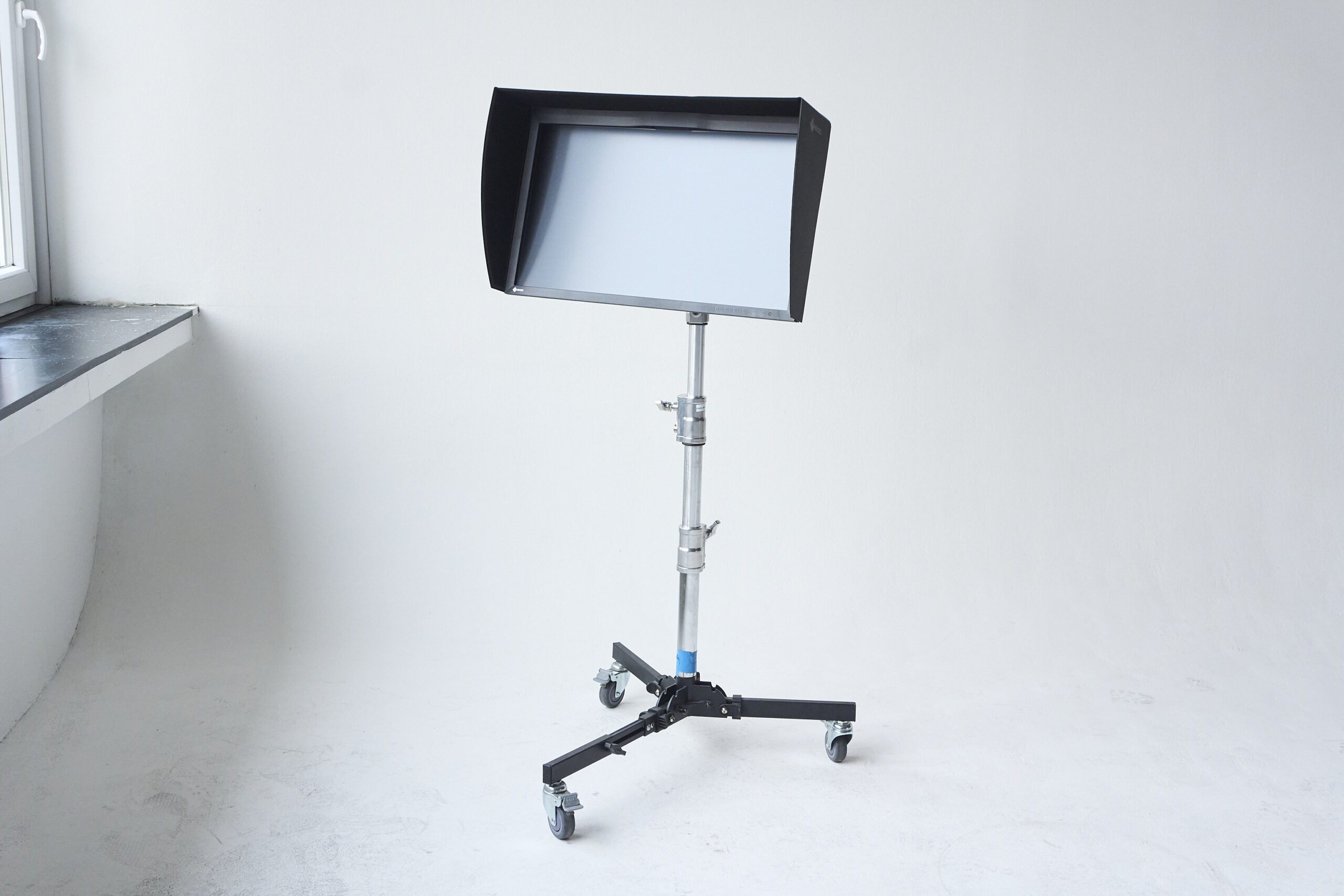

EIZO ColorEdge CG 2700 X, 4K UHD DISPLAY

Eizo’s newest 27 inch top tier display is every digi-operators 1st choice for color accuracy and viewing quality.
This display is unmatched and sets the standard for any photography and print display.

Panel

  • Type: IPS
  • Backlight: Wide-Gamut LED
  • Size: 26.9″ / 68.4 cm
  • Native Resolution: 3840 x 2160 (16:9 aspect ratio)
  • Viewable Image Size (H x V): 596.2 x 335.3 mm
  • Pixel Pitch: 0.155 x 0.155 mm
  • Pixel Density: 164 ppi
  • Display Colors: 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT)
  • Viewing Angles (H / V, typical): 178°, 178°
  • Brightness (typical): 500 cd/m2
  • Contrast Ratio (typical): 1450:1
  • Response Time (typical): 13 ms (gray-to-gray)
  • Color Gamut (typical): Adobe RGB: 99%, DCI-P3: 98%

Video Signals

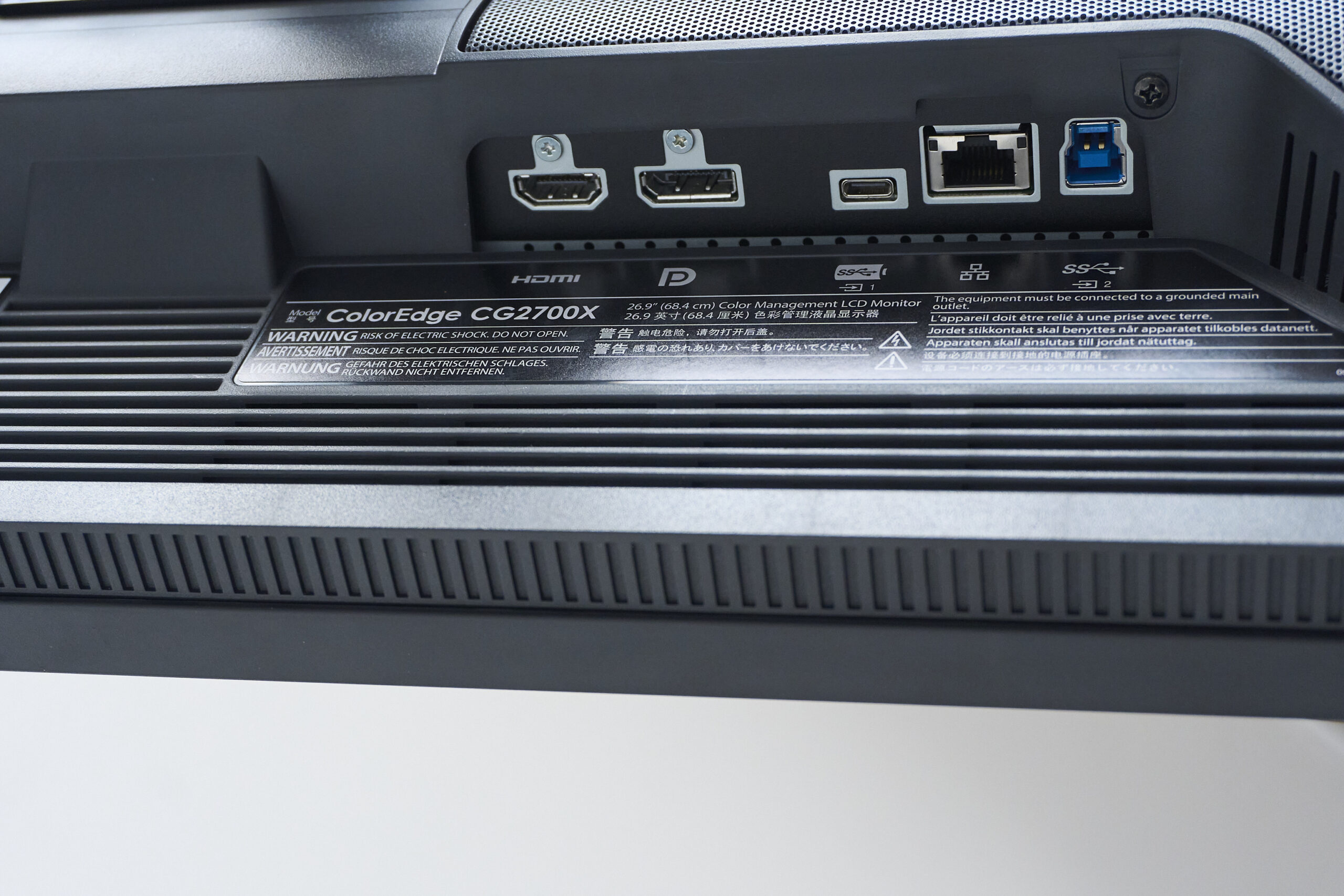

  • Input Terminals: USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3)
  • Digital Scanning Frequency (H / V)
    • USB Type-C, DisplayPort: 25 – 137 kHz / 23 – 61 Hz
    • HDMI: 15 – 135 kHz / 23 – 61 Hz
  • USB
  • Upstream: USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.), USB 3.1 Gen 1: Type-B

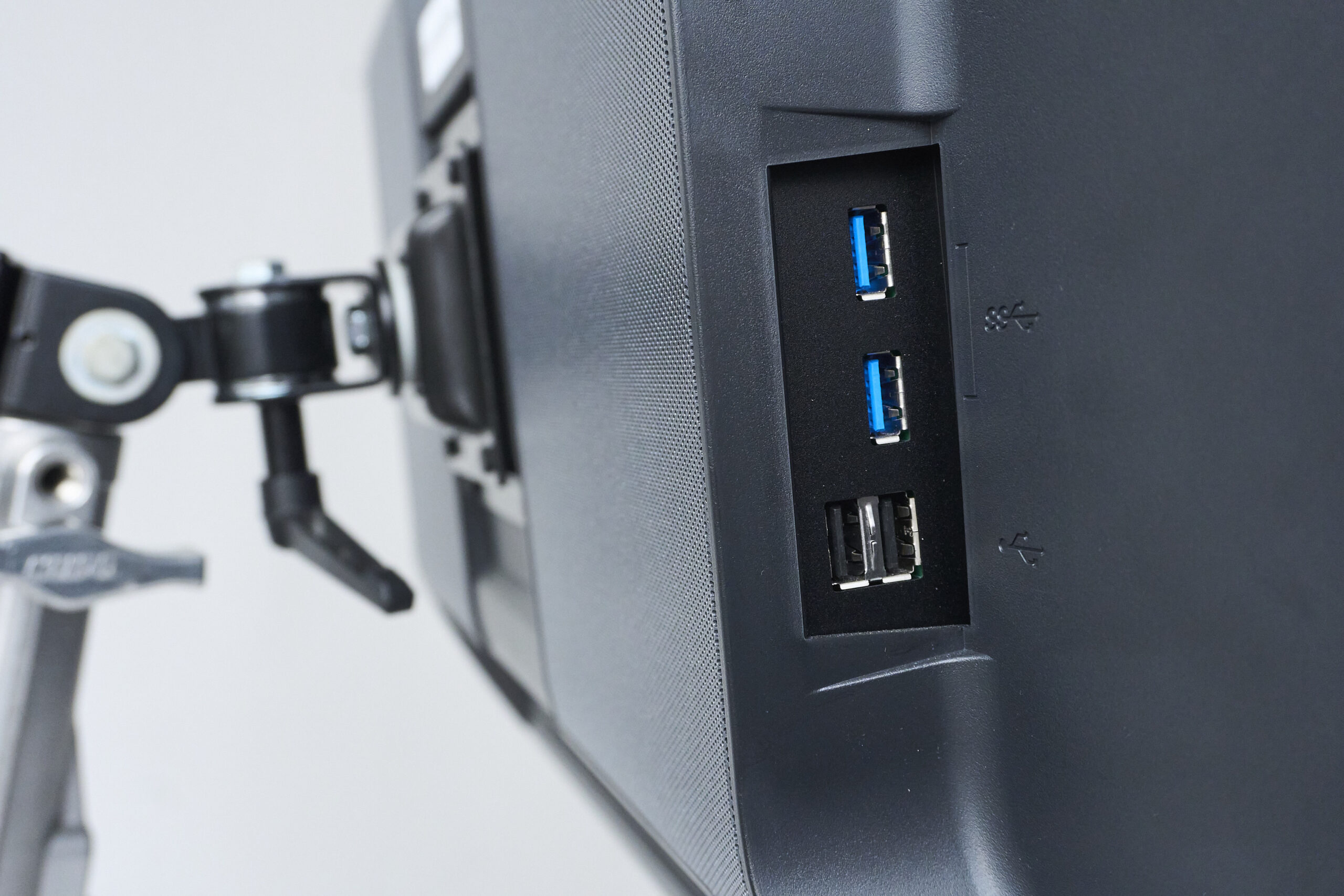

  • Downstream: USB 3.1 Gen 1: Type-A x 2; USB 2.0: Type-A x 2
  • USB LAN Adapter: RJ-45 (1000BASE-T)

Power

  • Power Requirements: AC 100 – 240 V, 50 / 60 Hz
  • Typical Power Consumption: 34W
  • Maximum Power Consumption: 225W
  • Power Save Mode: 0.5W or less

Built-in Calibration Sensor

  • Yes

Features & Functions

  • Brightness Stabilization: Yes
  • Digital Uniformity Equalizer: Yes
  • Preset Modes: User, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, AdobeRGB, sRGB, Calibration (CAL), SYNC_SIGNAL
  • HDR Gamma: HLG, PQ curve
  • OSD Languages: English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese
  • Others: Color Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, Zoom, DCI 4K Cropping, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Ethernet

Physical Specifications

  • Dimensions (Landscape, W x H x D): 638 x 415.9 – 570.9 x 245 mm
  • Dimensions (Without Stand, W x H x D): 638 x 390 x 86.2 mm

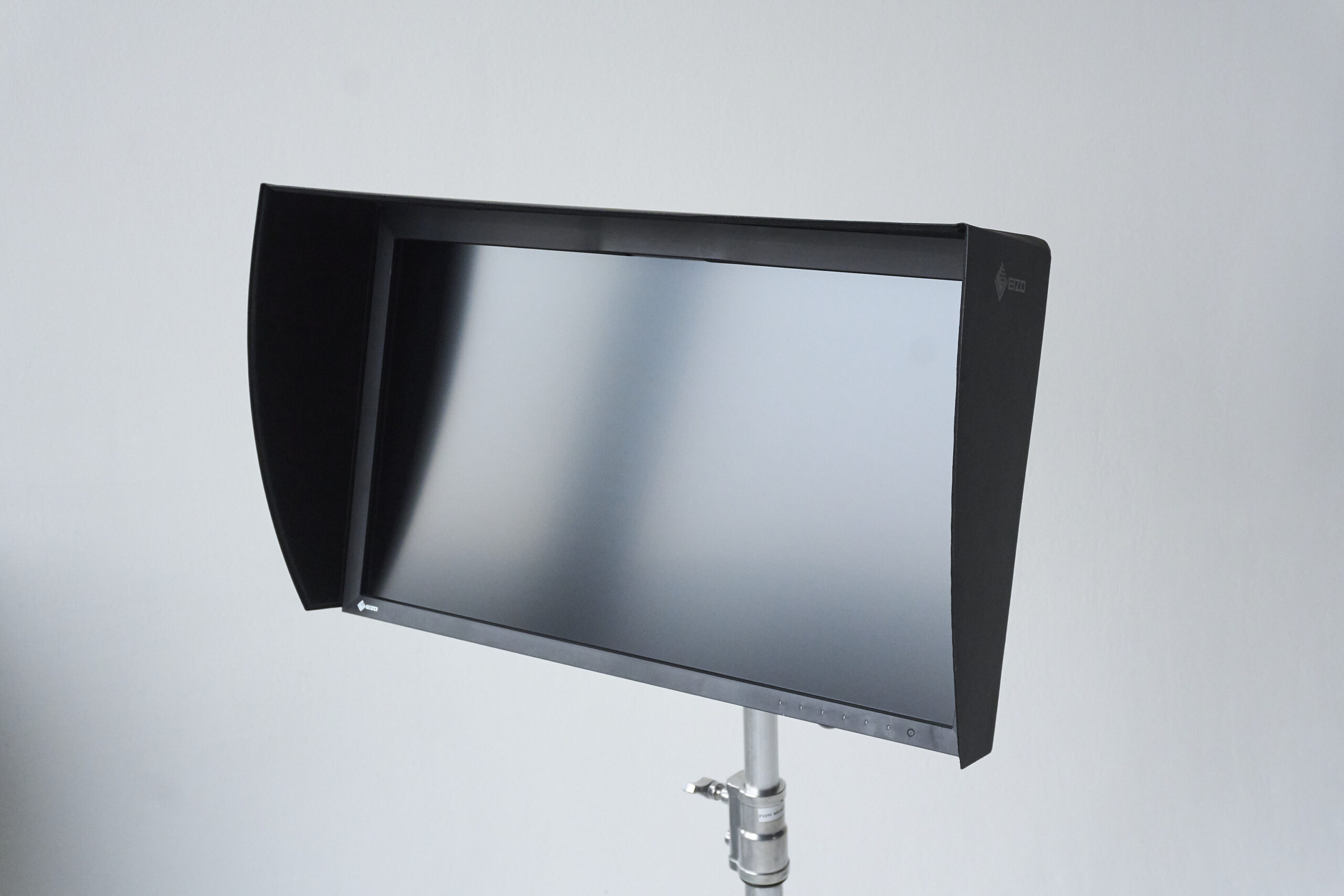

  • Dimensions (Landscape with Hood, W x H x D): 657.4 x 425.6 – 580.6 x 353.5 mm
  • Net Weight: 9.7 kg
  • Net Weight (Without Stand): 6.7 kg
  • Net Weight (With Hood): 10.4 kg
  • Height Adjustment Range: 155 mm
  • Tilt: 35° Up, 5° Down
  • Swivel: 344°
  • Pivot: 90°

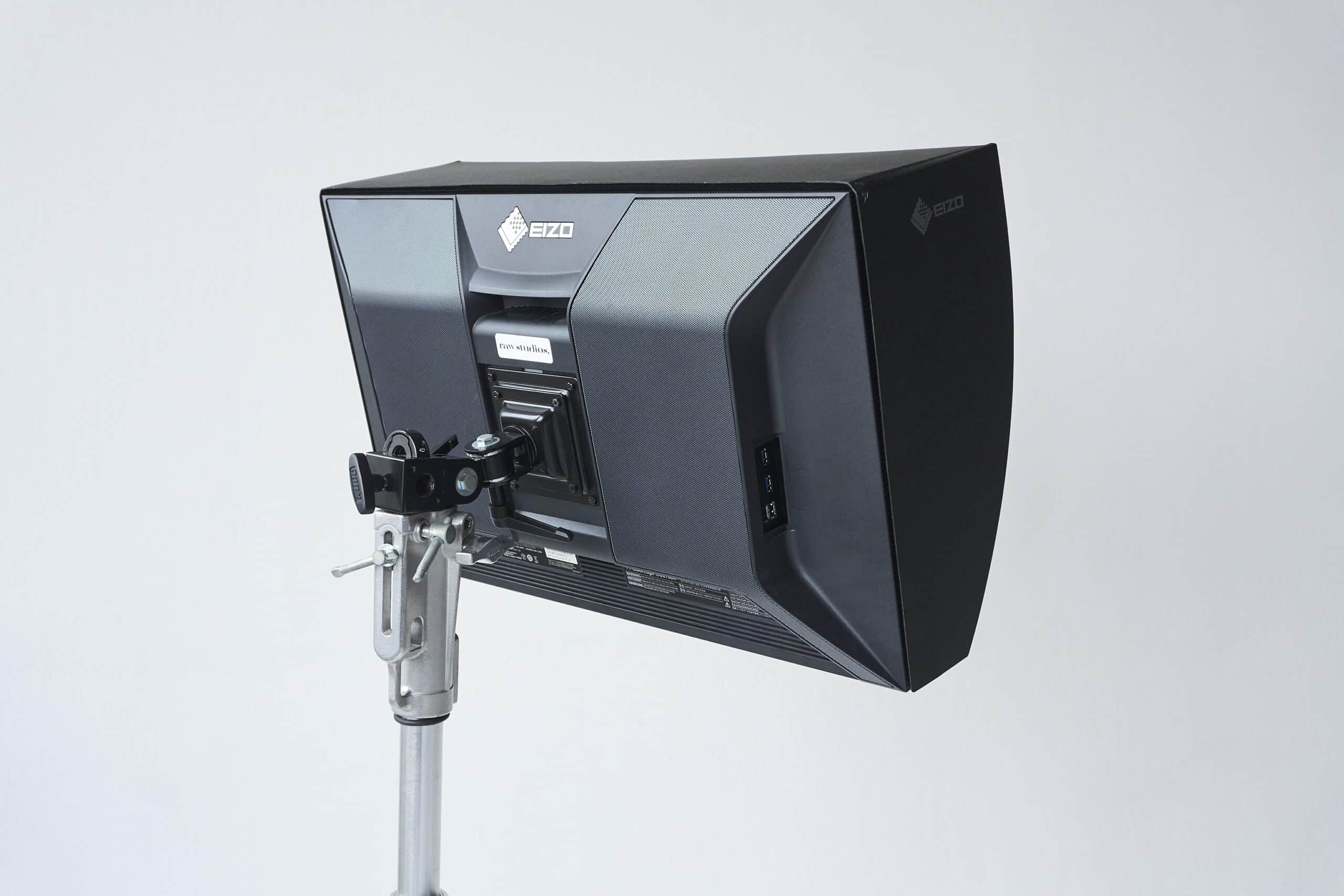

  • Hole Spacing (VESA Standard): 100 x 100 mm
